Lift swing check valve (TH-CKV-LTS)

Marine industry, Water supply and drainage, fire fighting, shipbuilding, water treatment and other systems, DN50 to D600, NBR/EPDM/VITON, Certificates & Approvals: DNV-GL, Lloyds, DNV, ABS, BV, Standards: EN 593,  API609

FEEDBACK

1 + 7 = ?

Lift swing check valve  (TH-CKV-LTS)

Area of application

Water supply and drainage, water treatment, fire-fighting and other systems

Data sheet of lifting  check valve:

Type:Wafer, double disc
Size & Connections:DN50 to D600
Medium:Waste water, Water, Seawater, Air, Inert Gas, Oil.
Materials:Cast Iron / Ductile Iron/ Carbon Steel / Stainless
Steel / Alu Bronze
Pressure Rating:PN10, PN16
Temperature:-30°C to 200°C
Seat/Lining: Replaceable Liner / Bonded Liner
NBR/EPDM/VITON
Certificates & Approvals: DNV-GL, Lloyds, DNV, ABS, BV Type Approval
3.1 & 3.2 Cert (on request)

Standards

  • DIN3202 F1,
  • BS EN1092 PN16
  • BS5153 (BS EN 558-1 Series 10)

Material of lift swing check valve Parts

Part nameMaterial
BodyCast Iron; Ductile Iron; Stainless Steel; Carbon steel
Disc / PlateStainless Steel; Carbon steel; Bronze
Shaft / stemStainless Steel Monel; Stainless Steel Inconel
Seat / liningNBR/EPDM/VITON
BoltsCarbon steel
NutsStainless steel

Lift swing check valve features

  • Easy maintenance, long lifetime
  • Simple & economical
  • Low cracking pressure
  • Low pressure drop
  • Quick and sensitive switching
  • Good sealing performance

Related types of check valves:

We have other types of check valves: single-disc swing check valve, dual plate check valve, tilting disc swing check valve, silent check valve, ball check valve used in Oil, Gas, Marine industry, Water supply and drainage, fire fighting, shipbuilding, water treatment and other systems, with Nominal Diameter of DN50 to DN1200, NBR/EPDM/VITON, Certificates & Approvals: DNV-GL, Lloyds, DNV, BV, API, ABS, CCS. Standards: EN 593, API609, API6D,

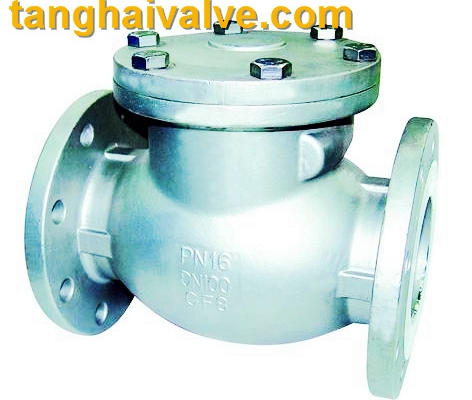

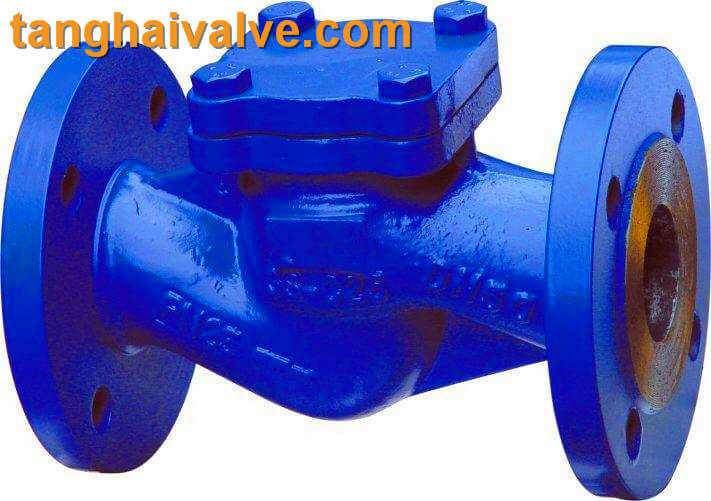

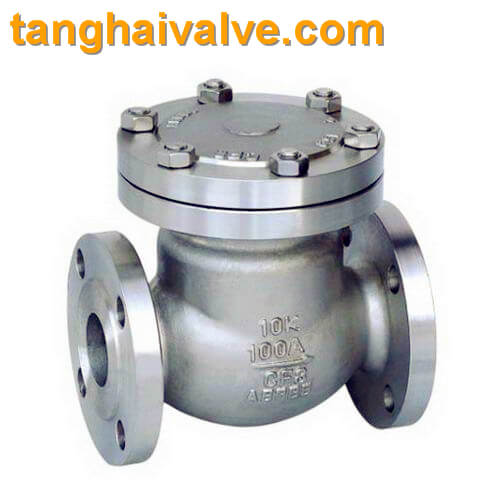

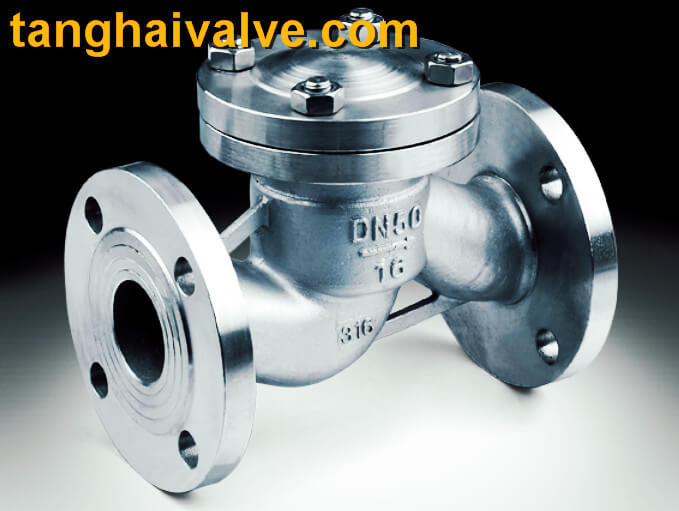

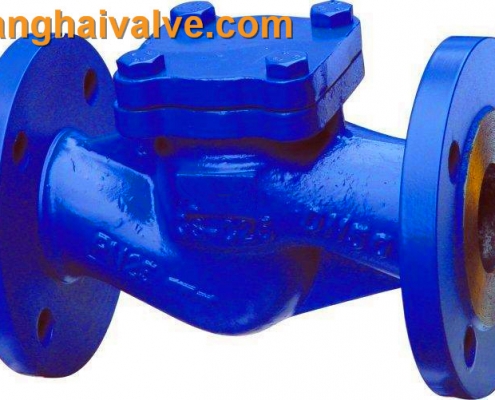

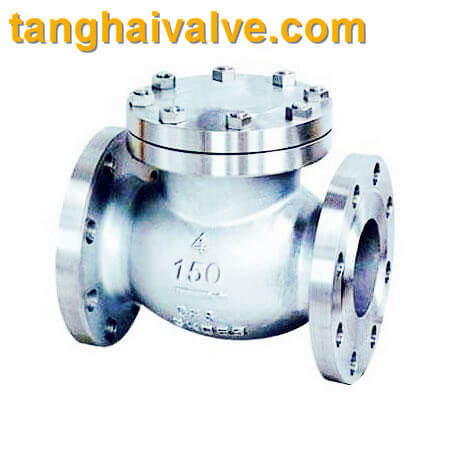

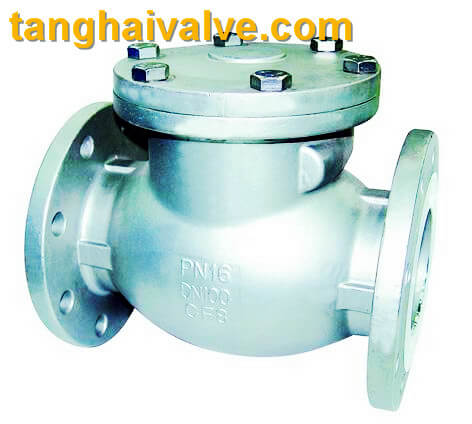

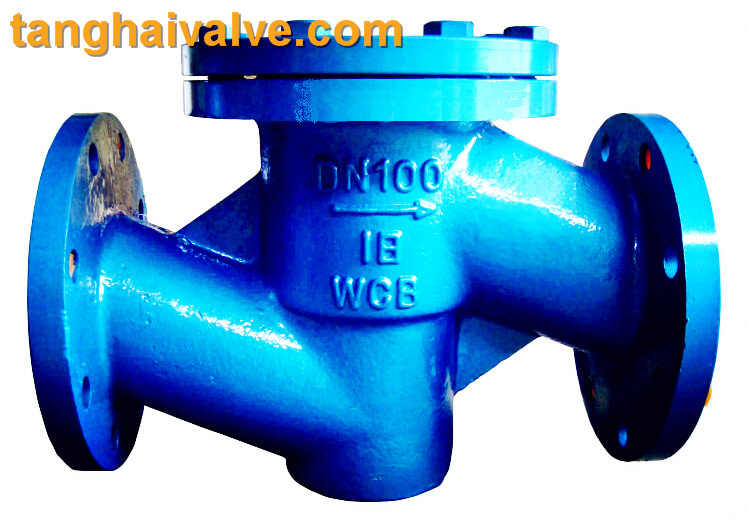

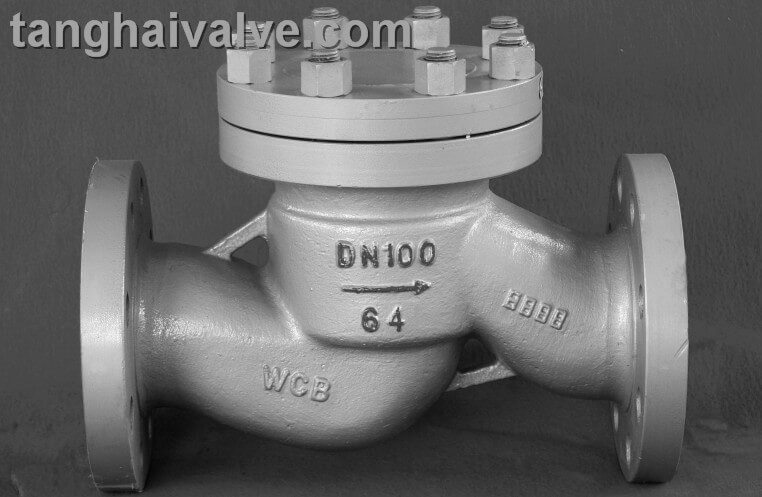

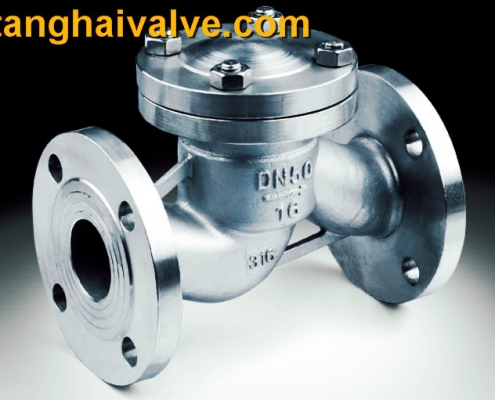

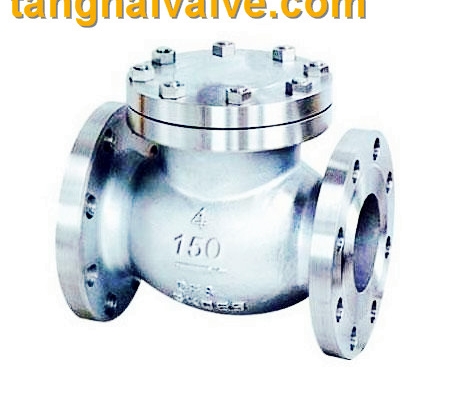

Lift swing check valve Photos
